How To: Connect a Yealink phone to a Wireless Network (Wi-Fi)

Pablo Vasquez
  • Updated

Manual Connection

Follow instructions below to manually enable Wi-Fi on your T53W Yealink phone.

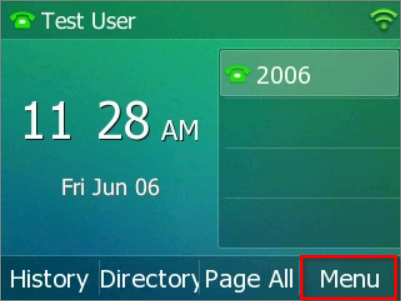

Select the Menu button.


Select Settings.

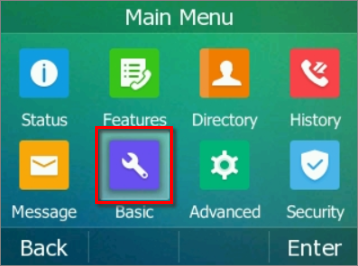

Select Basic Settings

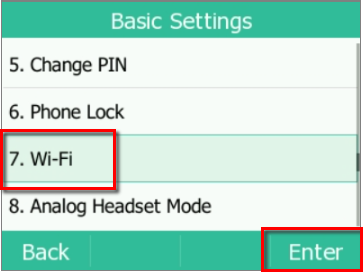

In the Basic Settings scroll down and select Wi-Fi

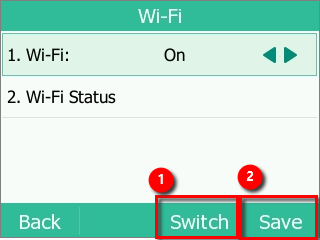

Turn the Wi-Fi setting On and Save

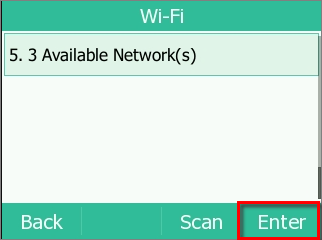

Now that phone has Wi-Fi On, scroll down to Available Network(s)

NOTE: the number of Available Networks will vary. In example below there are 12 available wireless networks.

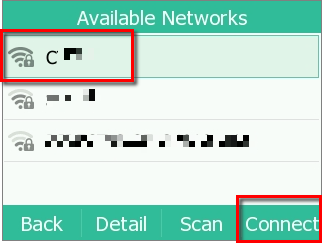

Scroll to the wireless network you want to connect to and select Connect

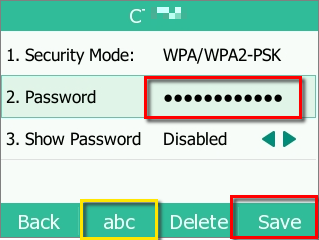

Enter the Password of the wireless network and select Connect

NOTE: to change from Numbers to Letters for Password press the "123" key. Some special characters can be found on the * key (star key).

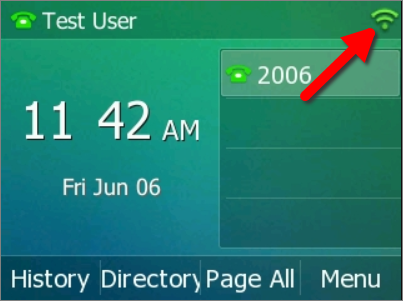

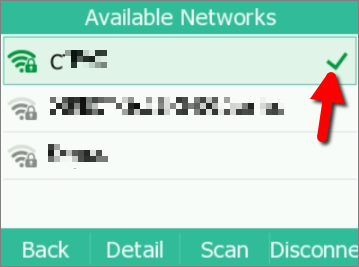

The icon below will indicate you have successfully connected to the Wi-Fi.




Configuration Parameters

static.wifi.enable="1"
static.network.pc_port.mode="1"
static.wifi.1.ssid="WIFISSID"
static.wifi.1.security_mode="WPA/WPA2 PSK"
static.wifi.1.password="WIFIPassword"
