This article will describe the steps to join two Yealink WH6X headsets to the same base unit.

One headset will allow the trainer to interact with the caller; the secondary trainee headset will only hear the audio of the call.

Preparing the Trainer's Headset

Connect the trainer's base unit to a PC with the Yealink USB Connect software installed (must be connected to the base's USB port labeled PC).

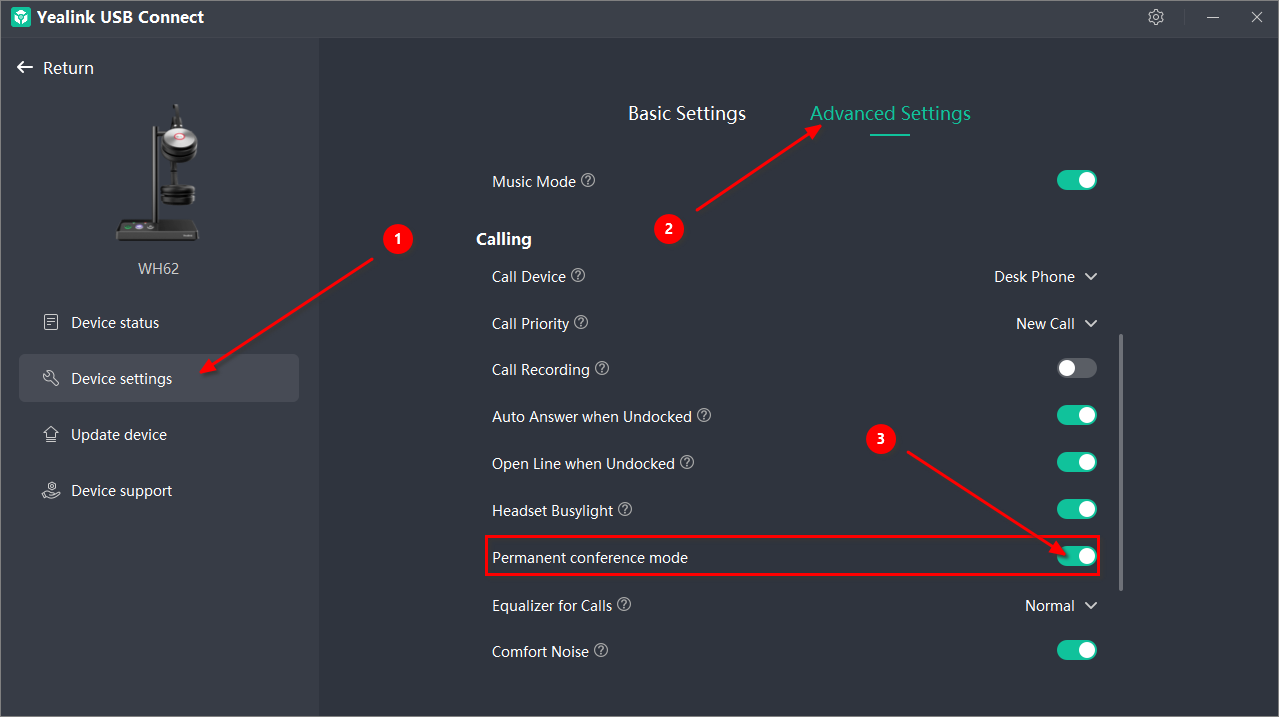

1. Navigate to Device Settings

2. Advanced Settings

3. Enable the Permanent conference mode setting

This setting will allow the trainee headset to remain connected to the trainer's base unit after each call.

NOTE: If you do not see this option, you may need to check that the firmware of the headsets are upgraded to the latest version.

Connecting the Trainee Headset

To connect the trainee headset to the trainer's base:

1. If the trainee's headset is on, start by turning it off. Begin by long-pressing the call control button for 3 seconds, release when you hear "Power Off"

2. Long-press the call control button again on the trainee's headset and hold it down until you hear two messages, "Power On" and "Pairing Mode", then release the button.

a. The headset may have a light blinking yellow indicating it is in Pairing Mode

b. If it does not go into Pairing Mode, begin again at step 1

3. On the trainer's base unit, long-press the PC button until it begins to blink green and white

4. Place the trainee headset (in Pairing Mode) on the trainers base unit

5. The trainer's headset will hear a *DING* sound, press the call control button on the trainer's headset to accept the secondary headset. The trainer's headset will hear "New Headset Joined".

Reconnecting the Trainee Headset to the Original Base

To reconnect the trainee headset to it's original base:

1. If the headset is on, start by turning it off. Begin by long-pressing the call control button for 3 seconds, release when you hear "Power Off"

2. Long-press the call control button again and hold it down until you hear two messages, "Power On" and "Pairing Mode", then release the button.

a. The headset may have a light blinking yellow indicating it is in Pairing Mode

b. If it does not go into Pairing Mode, begin again at step 1

3. Place the headset (in Pairing Mode) back onto the original base unit
