Auto Provision

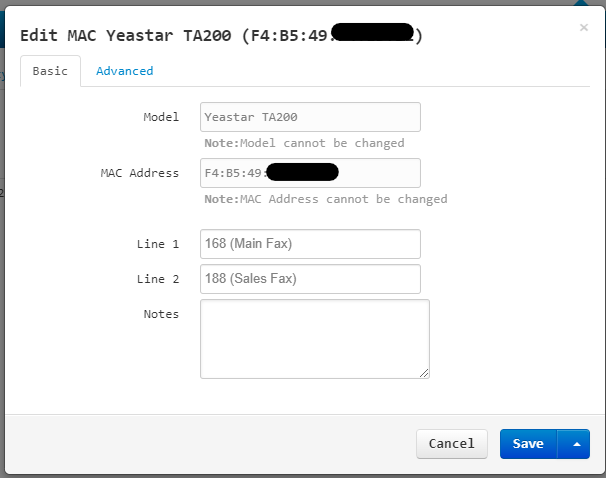

Create the users and assign them to the phone in the phones tab of the PBX Manager Portal:
Line 1 corresponds to Port 1 on the ATA
Line 2 corresponds to Port 2 on the ATA
etc.*
Configure the Device
Navigate to the Yeastar device's web UI (discover IP via network scan or press *** in on FXS port 1)

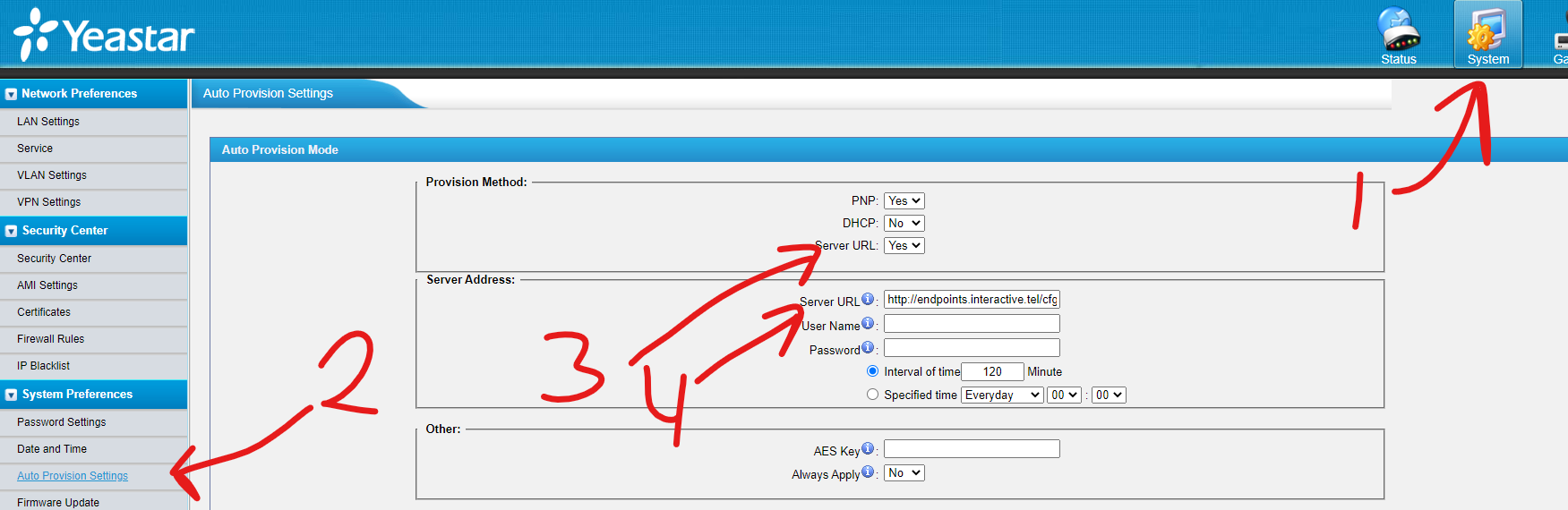

Click on System > Auto Provision Settings and set following settings:
Provision Method - Server URL: Yes
Server Address - Server URL: http://endpoints.interactive.tel/cfg

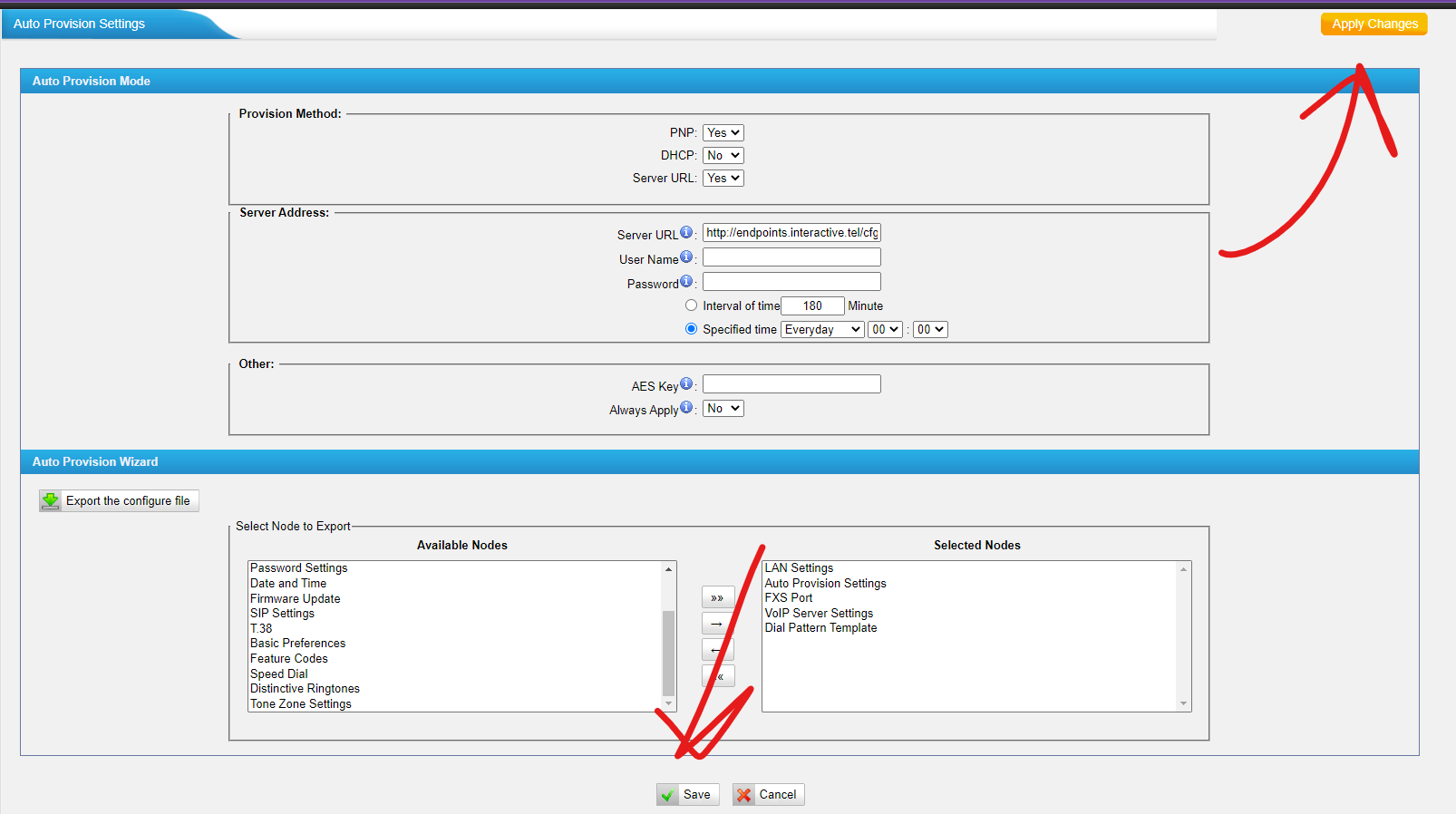

Save and Apply Changes to the device
Reboot the device
*Note: for the 16-port, 24-port, and 32-port devices, you'll need to involve the TotalCX Support team.*

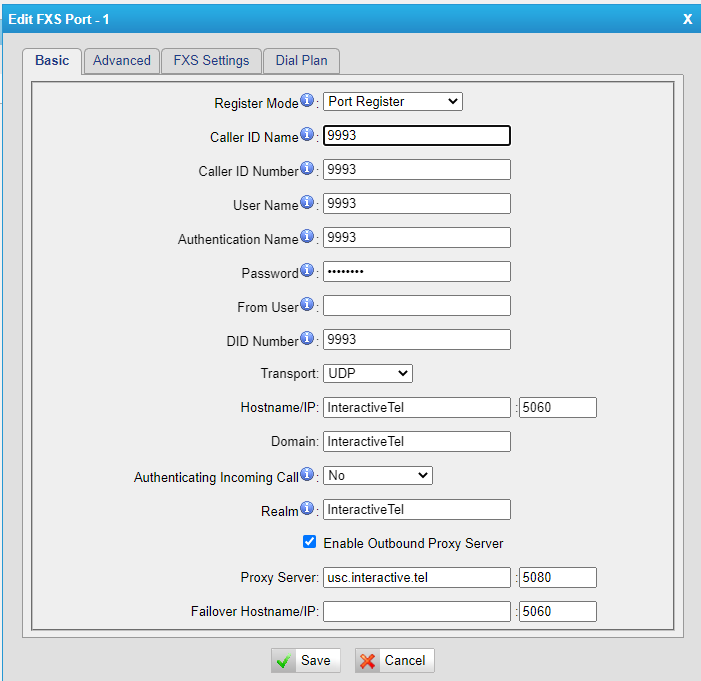

Manual Configuration
TA100/200:
TA400/800/1600 etc:
